Corrugated cardboard, or corrugated fiberboard, is a cornerstone of contemporary packaging and logistics, valued for its strength, lightweight nature, and adaptability. In today’s world, it supports a vast array of industries, from e-commerce to heavy manufacturing.
Types of Corrugated Cardboard
Corrugated cardboard is categorized by its structural layers and flute profiles, tailoring its properties for specific uses.
By Wall Structure:

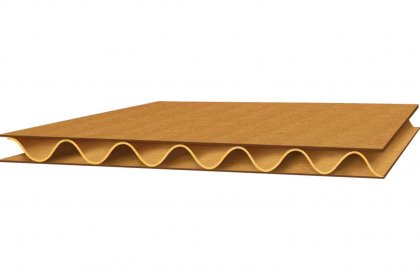

Single Wall: One fluted medium between two linerboards; the most common for general packaging.

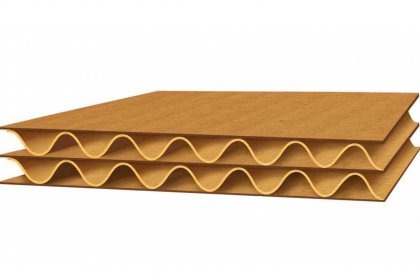

Double Wall: Two fluted layers with three linerboards; ideal for heavier or stacked goods.

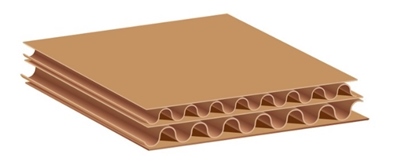

Triple Wall: Three fluted layers and four linerboards; used for industrial-strength needs.
By Flute Profiles:
A Flute: ~4.5–5 mm thick, excellent cushioning for fragile items.
B Flute: ~2.5–3 mm, versatile with good printability for retail.
C Flute: ~3.5–4 mm, balanced strength for shipping boxes.
E Flute: ~1–1.5 mm, thin for high-quality printing.
F Flute: <1 mm, microflute for premium packaging.
Combination Flutes: E.g., BC or EB, merging strengths like printability and durability.
Thickness Standards and Specifications
Thickness and weight define corrugated cardboard’s performance, standardized globally for consistency.
- Units and Measurements:
- Thickness in millimeters (mm) or microns (μm; 1 mm = 1,000 μm).
- Grammage (GSM; grams per square meter) for liner and medium weight, typically 90–275 GSM.

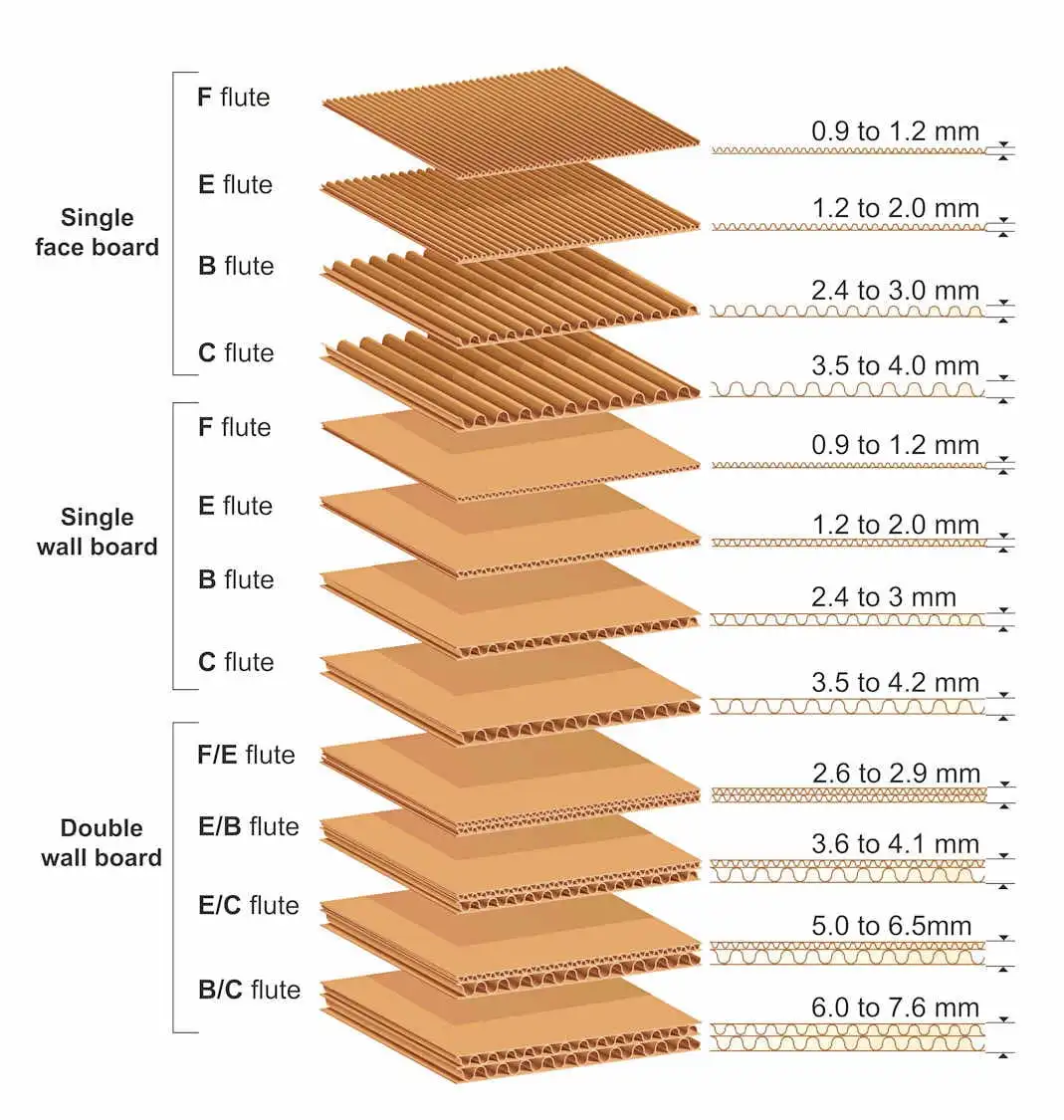

Table 1: Flute Thickness and Properties
| Flute Type | Thickness (mm) | Flutes per Linear Foot | GSM Range (Liner) | Key Functionality |
|---|---|---|---|---|
| A | 4.5–5.0 | 33–36 | 125–250 | High cushioning |
| B | 2.5–3.0 | 47–53 | 90–200 | Printability, versatility |
| C | 3.5–4.0 | 39–43 | 125–225 | Strength and stacking |
| E | 1.0–1.5 | 90–95 | 90–175 | Fine printing |
| F | 0.8–1.0 | 120–130 | 90–150 | Sleek, premium finish |
Quality Assessment
Quality ensures corrugated cardboard meets modern demands, assessed through rigorous testing.
- Physical Tests:
- Edge Crush Test (ECT): Measures vertical strength in pounds per inch (lb/in).
- Box Compression Test (BCT): Assesses whole-box strength in pounds (lbs).
- Bursting Strength (Mullen): Tests pressure resistance in pounds per square inch (psi).
- Moisture Resistance (Cobb Test): Water absorption in g/m² over 60 seconds.
Table 2: Quality Standards by Wall Type
| Wall Type | ECT (lb/in) | BCT (lbs) | Mullen (psi) | Cobb Value (g/m²) | Typical Use |
|---|---|---|---|---|---|
| Single Wall | 26–32 | 200–400 | 150–200 | <30 | E-commerce, light goods |
| Double Wall | 42–48 | 600–900 | 275–350 | <35 | Appliances, stacking |
| Triple Wall | 67–90 | 1000–1500 | 400–600 | <40 | Industrial equipment |
Visual and Material Checks: Uniform flutes, smooth liners (Kraft for strength, Test for economy), and consistent adhesion.
Manufacturing Essentials
Modern corrugated cardboard production is streamlined for efficiency and sustainability.

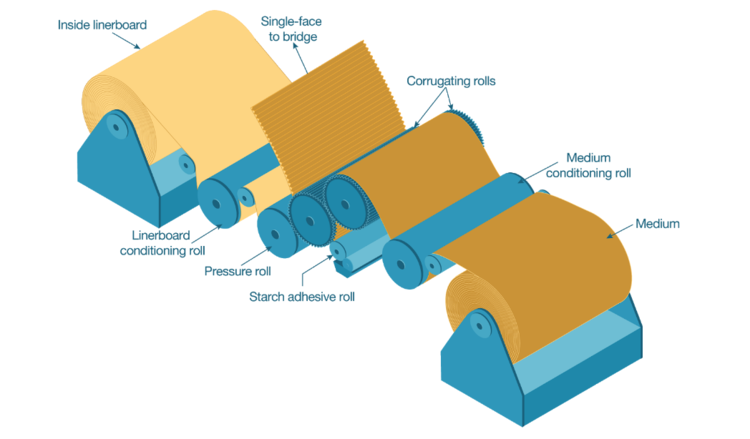

- Process Overview:
- Paper Production: Virgin (Kraft) or recycled pulp formed into rolls.
- Corrugation: Medium paper fluted via heated rollers.
- Lamination: Flutes bonded to liners with starch-based adhesive.
- Finishing: Cut, scored, and printed (often CMYK for branding).
- Modern Advances: Digital printing for customization, lightweight microflutes (e.g., F, G) for material efficiency.
Modern Applications and Functionalities
Corrugated cardboard excels in today’s applications due to its versatility and performance.
- Shipping and Logistics:
- Functionality: Lightweight reduces shipping costs; high ECT/BCT ensures stackability.

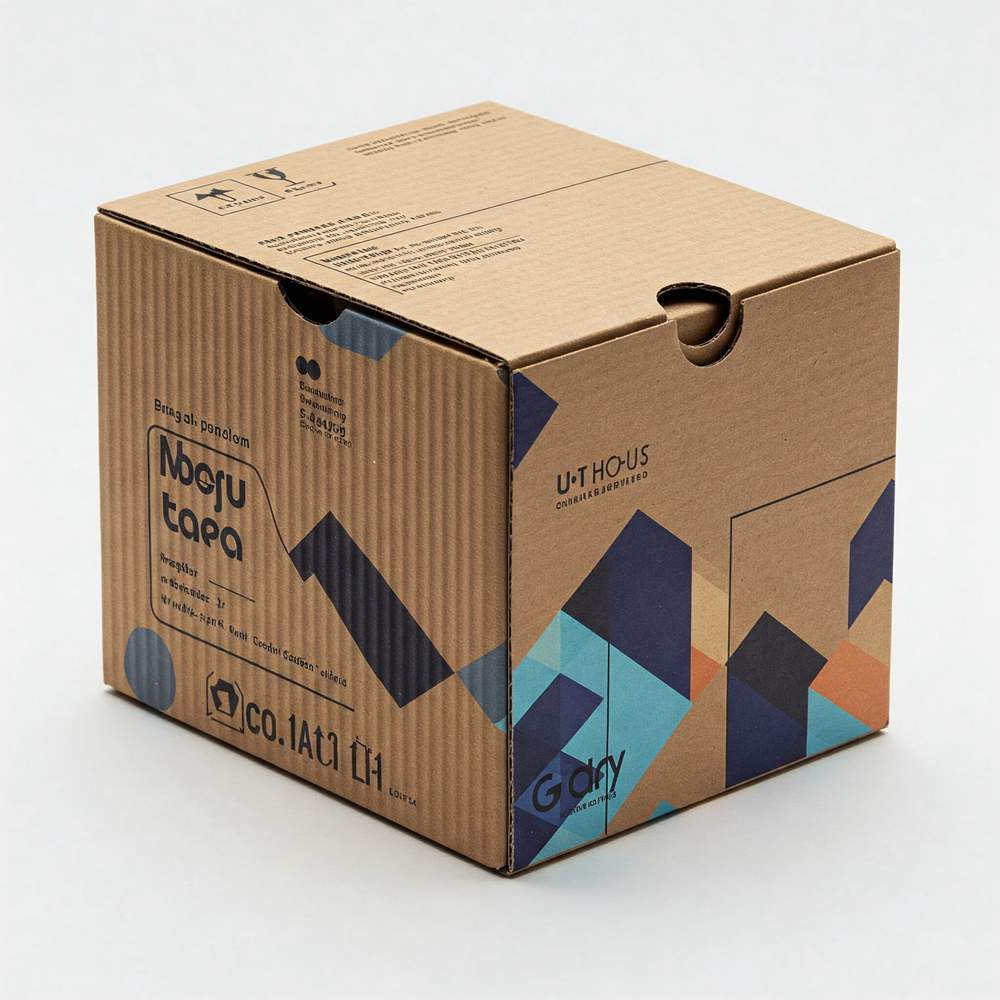

- Examples: Single-wall C flute for e-commerce mailer boxes, double-wall BC for appliances.
- Impact: Supports billions of boxes in global supply chains annually.
Retail and Display:
- Functionality: E/F flutes enable crisp CMYK printing for branding.

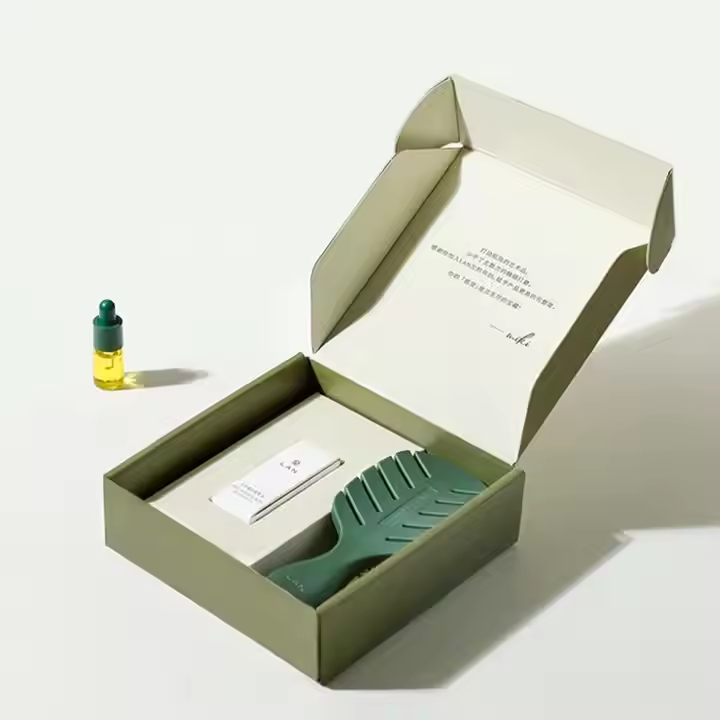

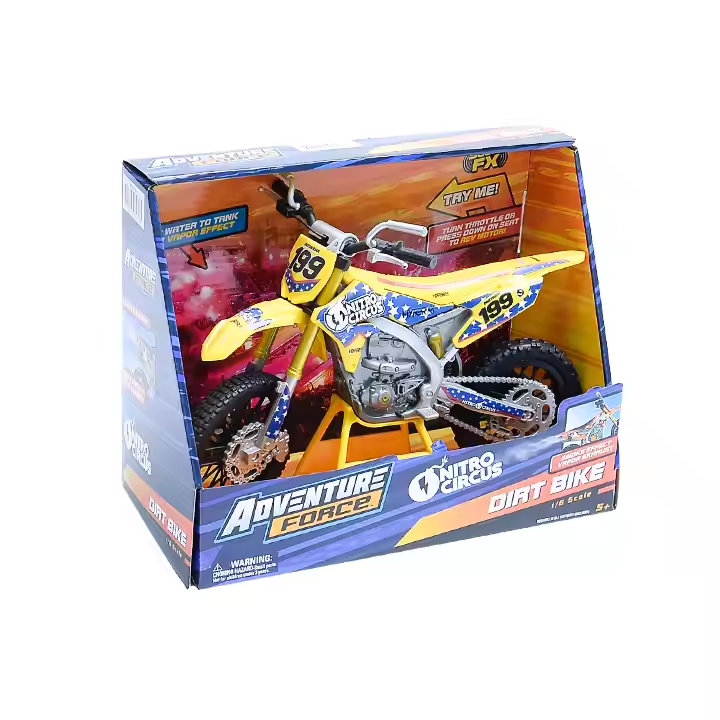

- Examples: Point-of-purchase displays, premium gift boxes.
Protective Packaging:
- Functionality: A flute’s cushioning absorbs shocks; E flute dividers organize contents.
- Examples: Glassware sleeves, electronics inserts.
Specialized Uses:
- Functionality: Wax coatings for moisture resistance, antibacterial treatments for safety.
- Examples: Seafood transport boxes, medical supply packaging.
Applications by Flute Type
| Flute Type | Application Example | Wall Type | Key Functionality | Typical Dimensions (in) |
|---|---|---|---|---|
| A | Fragile goods shipping | Single Wall | Shock absorption | 18×12×12 |
| B | Retail product boxes | Single Wall | Printability, strength | 12×9×6 |
| C | Standard shipping boxes | Single Wall | Balanced durability | 24×18×18 |
| E | Branded cosmetic boxes | Single Wall | High-resolution printing | 10×6×4 |
| F | Luxury electronics packaging | Single Wall | Sleek, lightweight design | 8×5×3 |
| BC | Appliance crates | Double Wall | Enhanced stacking strength | 30×20×20 |
Sustainability and Innovation
Corrugated cardboard aligns with modern eco-conscious trends and technological advancements.
- Sustainability: Over 90% recyclable, with recycled content often exceeding 70% in production.
- Innovations:
- Digital printing for small-batch customization.
- Lightweight designs (e.g., G/N flutes, ~0.5 mm) reduce material use.
- Bio-coatings enhance functionality (e.g., water resistance).
| Metric | Value | Notes |
|---|---|---|
| Recyclability | 90–95% | Reusable up to 8 cycles |
| Recycled Content | 70–80% | Common in modern production |
| Weight Reduction (F/G) | 20–30% vs. B Flute | Microflutes save material |
| Energy Use Reduction | 15–25% (modern plants) | Compared to 1990s standards |
